House Left Rear to Center Stage View

House Left Onstage Rear to Center Stage Sightline

House Left Front to Center Stage View

House Center Rear to Center Stage View

House Left Rear of Forward Section to Center Stage View

Fully opened ballroom subdivides into 7 discrete operating locations in 20 minutes....9 consoles linked for the duration of the event.

Overhead perspective showing catwalk / Delay amp locations

Single Hung Meyer UPQ 1p's used to overcome an extremely difficult sightline and overhead scenic obstruction issue

An example of data gleaned from CAD files imported into a manufacturer's proprietary prediction software

This setup was installed in a large tent situated on the grounds of the MBUSA plant in Vance Alabama.

This was one of two broadcast areas we serviced for a third party . Note the top left cluster as part of a second system covering the exhibit floor lounge area.

This was one of two broadcast areas we serviced for a third party . This is a partial later version of the design shown in the previous image.

Partial image related to a design commissioned by an associate company

This is the final design as implemented utilizing data gleaned from the full version of the partial previous image. Commissioned by an associate company.

This is the system design as implemented. Commissioned by an associate company.

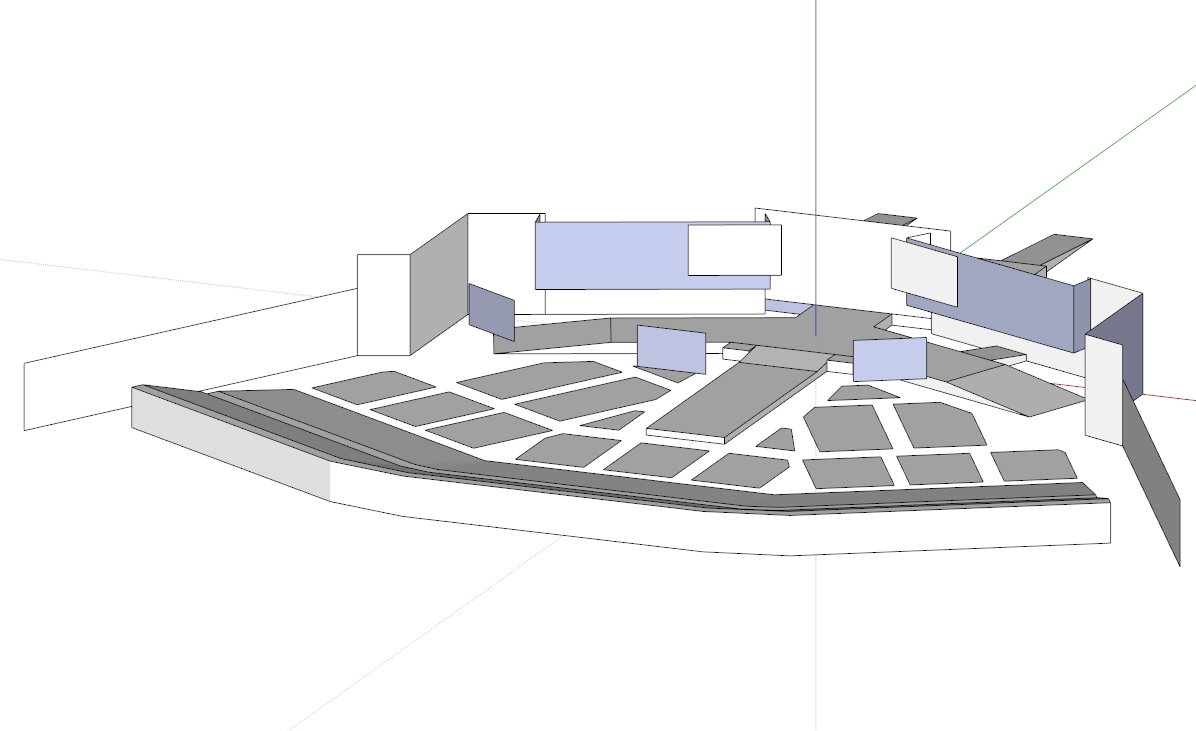

Model of the Show Layout prior to insertion of Speaker Systems

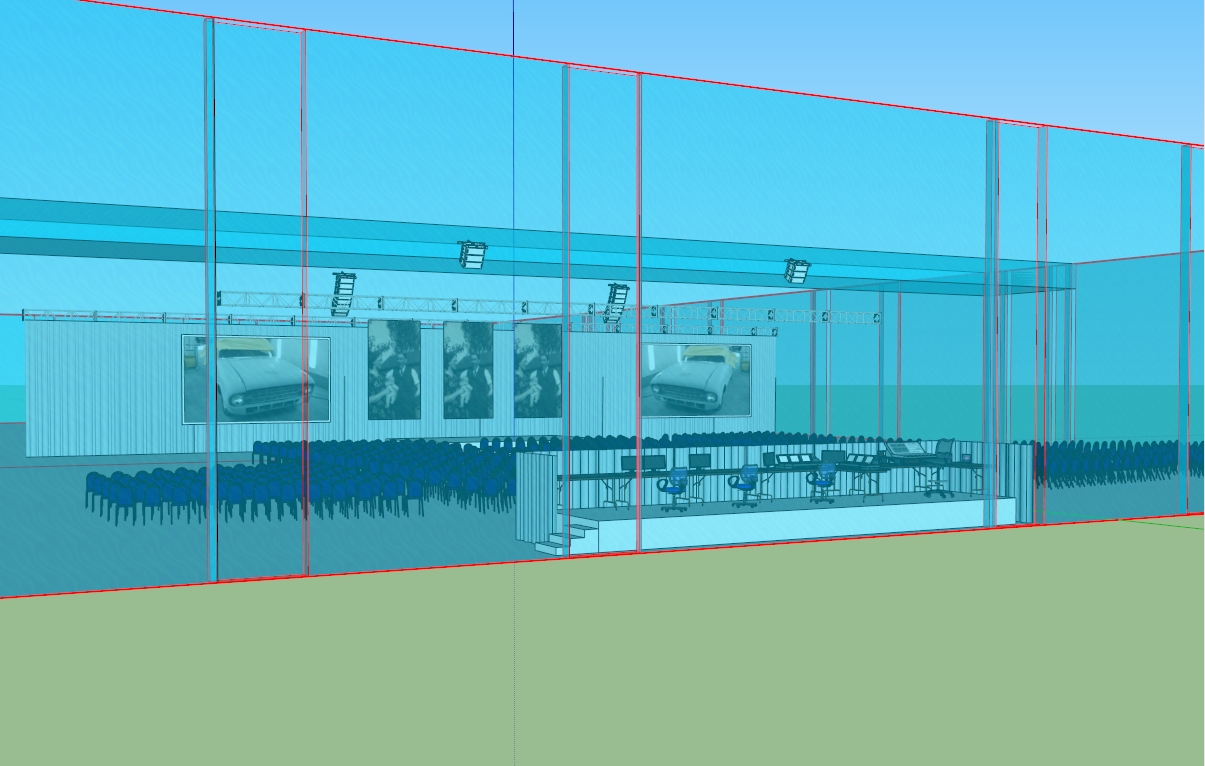

Sightline Study with speakers inserted via previous 3D Model

Overview of System as implemented

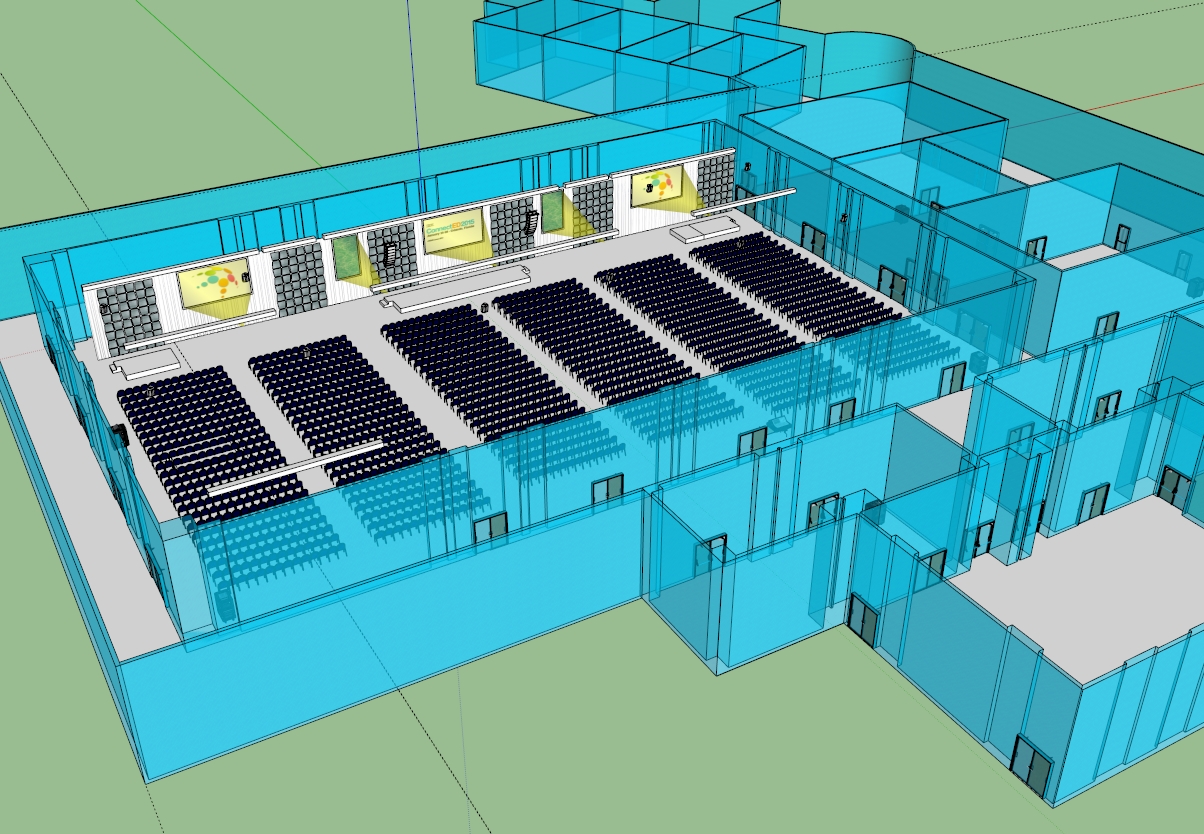

Offset Front View from "outside" the ballroom with Speaker Arrays inserted

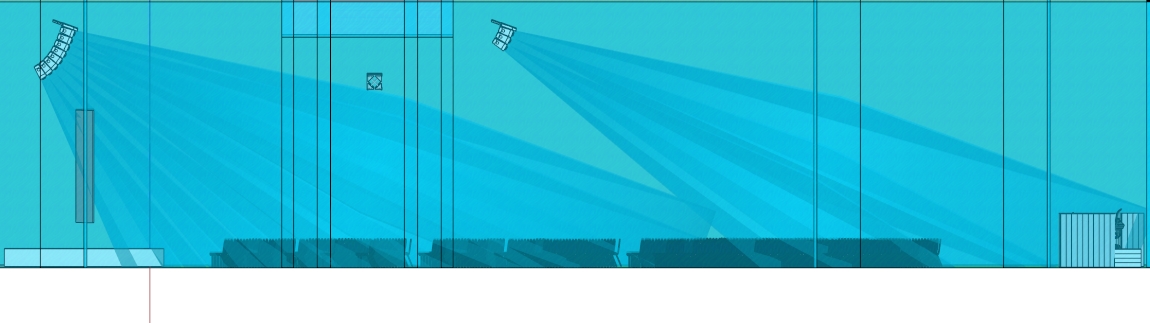

Side View showing basic Speaker Array Coverage

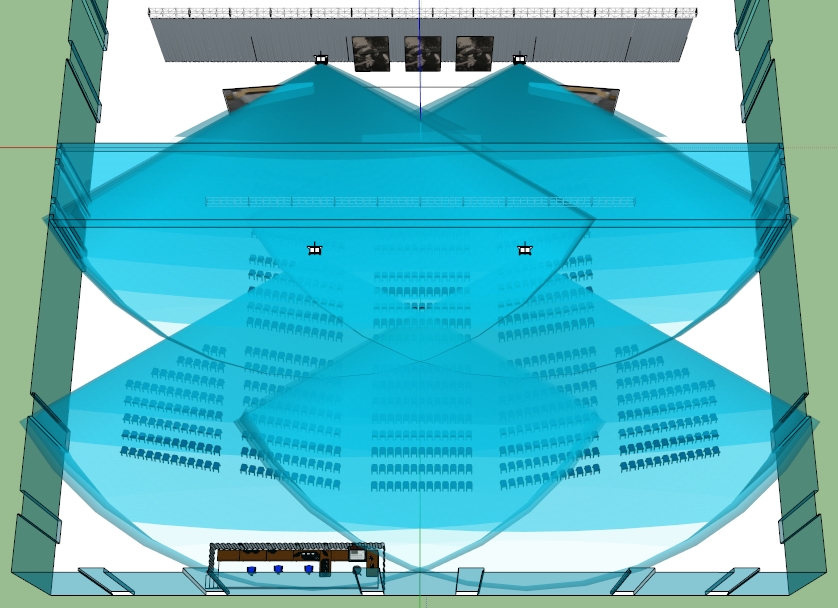

Overhead view showing basic Speaker Array Coverage

Overview of the General Session which subdivides into multiple spaces at various times
